Application:

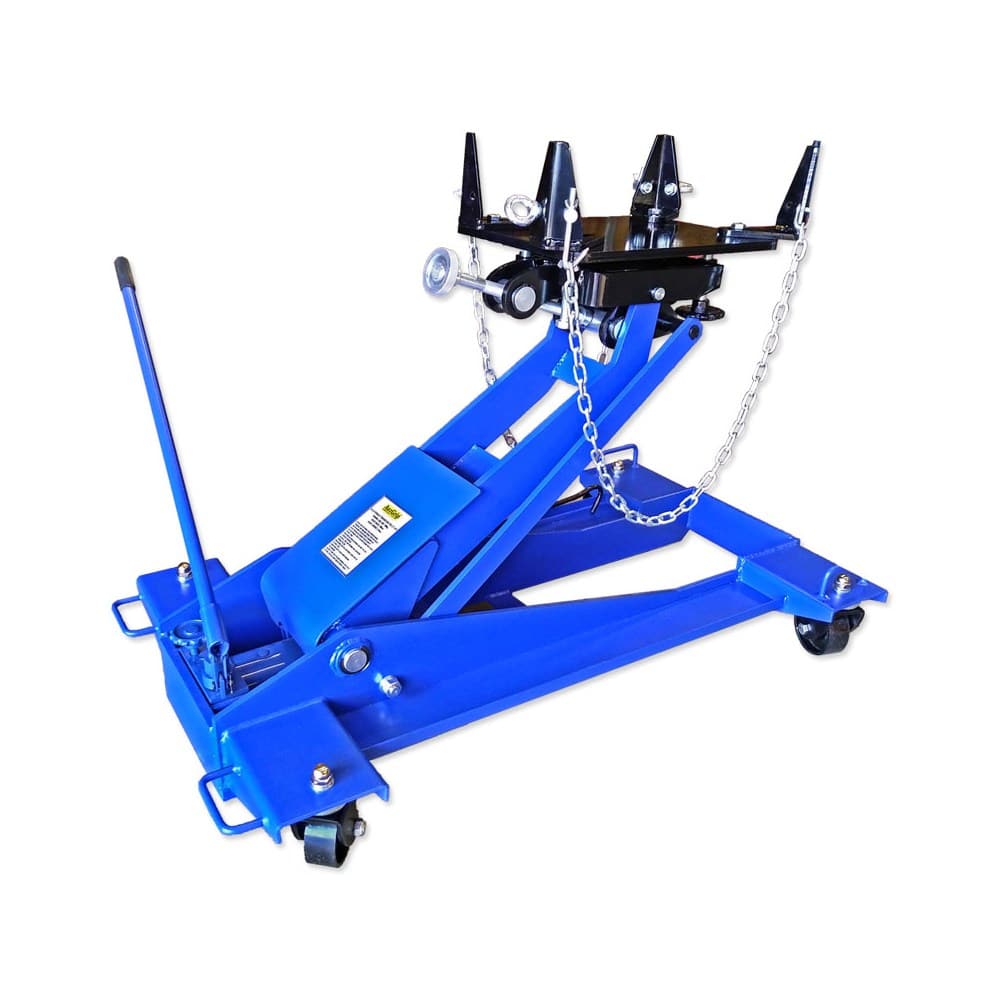

To aid in the safe removal and /or installation of large heavy duty agricultural, earthmoving, 4-wheel drive, truck and bus transmissions, transfer cases and even differentials. Unique adjustable, 2-way tilt cradle allows the best possible transmission alignment.
Features:
- Stable, heavy duty steel , chassis construction
- Fully adjustable heavy-duty cradle with 2-way tilt for optimum transmission alignment
- Adjustable safety restraint chains
- User friendly 360 degree pivoting pumping handle form maximum multi-directional operation
- Safety overload hydraulic by-pass system prevents hydraulic damage
- Industrial grade, heavy duty, ball bearing, swivel castor wheels for ultimate maneuverability
- Baked enamel finish for corrosion resistance
SAFETY WARNING
- Use the hydraulic trolley jack on a hard, level surface (concrete is ideal) and ensure it is free to roll during the lifting and lowering process
- Use this hydraulic trolley jack for lifting and lowering only
- Observe all safety warning information and safe use instructions. Wear safety glasses when operating this equipment
Specifications:
- Maximum Capacity: 1800Kg
- Minimum Saddle Height: 210mm
- Maximum Saddle Height: 900mm
- Chassis Width: 652mm
- Chassis Length: 1087mm
- Minimum cradle dimensions: 385 x 470mm
- Maximum cradle dimensions: 570 x 470mm
- Cradle tilt angle: 30 degrees both fore and aft
- Castor wheel size: 100mm
- Weight: 140kg
- Packaging size: 1220x730x350mm
